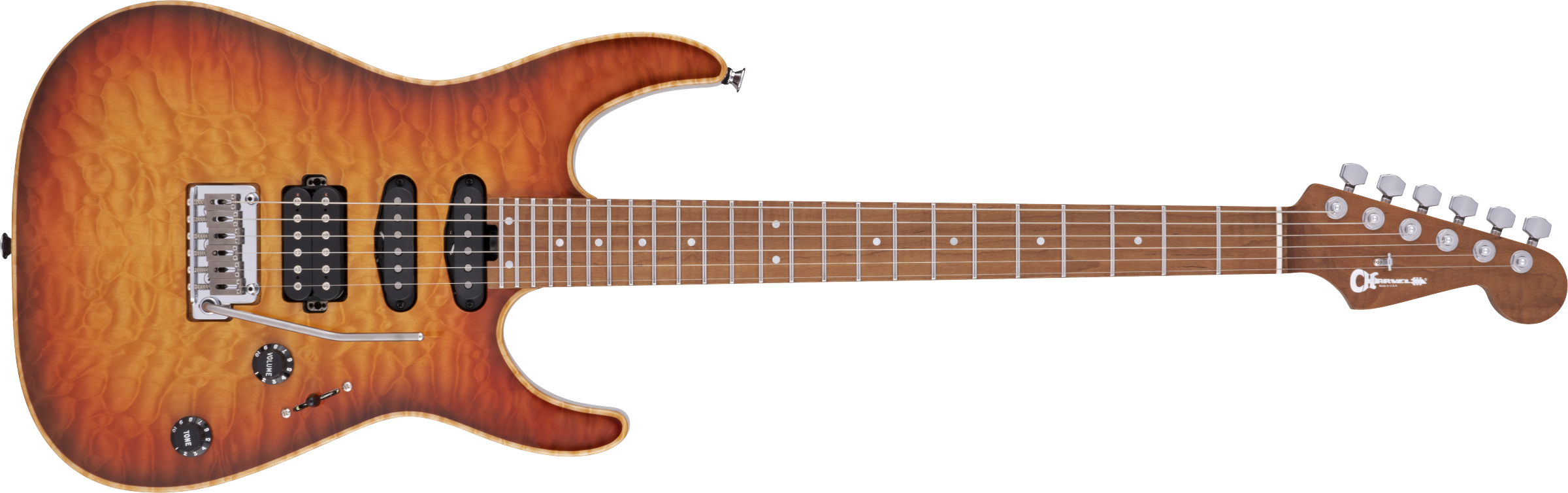

The Charvel USA Select DK24 HSS 2PT CM QM is an exquisite USA-made instrument designed for modern players with discerning tastes. Born on west coast soil, the USA DK24 is meticulously built by the Charvel team at the Custom Shop in Corona, California, so nothing about this high-performance axe is overlooked.
The Dinky™ alder body features a rippling quilt maple top and is paired with a bolt-on caramelized maple “speed” neck with graphite reinforcement, sculpted heel and a silky-smooth hand-rubbed urethane back finish for comfortable playability. The back of the body features a scalloped lower back bout that works in tandem with the shredder’s cut heel to allow for easy upper fretboard access.
Built for highly-technical playing, its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets, pearl dot inlays and a Graph Tech® TUSQ® XL nut. Luminlay® side dots provide fretboard guidance even on the darkest of stages, while a heel-mount truss rod adjustment wheel makes for quick and painless neck relief tweaks.

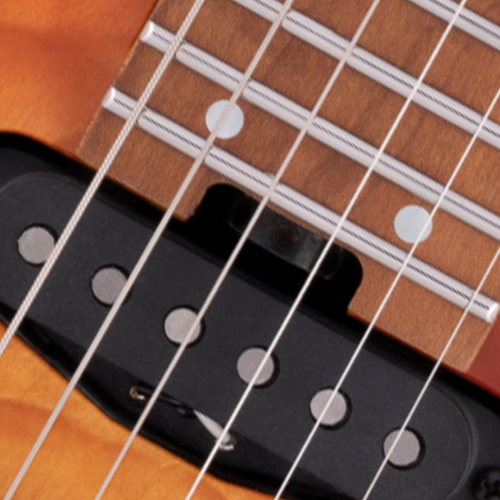

An HSS pickup configuration consisting of a custom Seymour Duncan® Full Shred™ SH-10B bridge pickup, Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup proves to be a versatile tonal force with beefed up mids and articulated, crispy highs.
Other premium modern features include a five-way blade switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge with titanium saddles and thick brass block, USA-made Sperzel® locking tuners, and more.
Sporting sophisticated style, sound and craftmanship, the USA Select DK24 HSS 2PT CM QM is available in Autumn Glow or Blue Burst with masked-off natural binding chrome hardware.
Alder Dinky™ Body with Quilt Maple Top12"-16" Compound Radius Caramelized Maple FingerboardScalloped Lower Back BoutBeveled Output JackShredder's Cut HeelSperzel® Die-Cast Tuning MachinesSeymour Duncan® Custom Full Shred™ SH-10B bridge, Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil middle & Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil neck pickupsLuminlay® Side DotsHeel-Mount Truss Rod Adjustment WheelGotoh® Custom 510 Recessed Tremolo Bridge with Titanium Saddles and Thick Brass Block
Model Number 2839413798 Est. U.S. Street $3,799.99 Series USA Select Color Autumn Glow Number of Strings 6 Orientation Right-Hand
Bridge Pickup Custom Seymour Duncan® Full Shred™ SH-10B Middle Pickup Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil Neck Pickup Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil Pickup Color Flat Black Controls Volume (with 500K EVH® Bourns® Low Friction Potentiometer), No-Load Tone Pickup Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Inner Coil of Bridge and Middle Pickup, Position 3. Neck and Bridge Outer Coil, Position 4. Neck and Middle Pickup, Position 5. Neck Pickup Pickup Configuration HSS
Body Finish Gloss Body Shape Dinky™ Body Material Alder Body Binding Masked-Off Natural Body Top Quilt Maple
Bridge Gotoh® Custom 510 Tremolo Bridge with Brass Block and Titanium Saddles Hardware Finish Chrome Tremolo Arm Gotoh® Tuning Machines Sperzel® Die-Cast Locking Pickguard None Control Knobs Stratocaster®-Style Skirt Switch Tip Black
Neck Material Caramelized Flame Maple Neck Construction Bolt-On with Graphite Reinforcement Neck Finish Hand-Rubbed Urethane Neck Shape Speed Neck with Rolled Fingerboard Edges Neck Binding None - Rolled Fingerboard Edges Scale Length 25.5" (648 mm) Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Caramelized Flame Maple Number of Frets 24 Fret Size Jumbo Stainless Steel Nut Material Graph Tech® TUSQ® XL Nut Width 1.6875" (42.86 mm) Position Inlays 4mm Pearloid Dot Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel Headstock Licensed Fender® Stratocaster® Neck Plate 4-Bolt Sculpted Heel
Strings Nickel Plated Steel (.009-.042 Gauges) Strap Buttons Standard
