Dinky™ (DK)

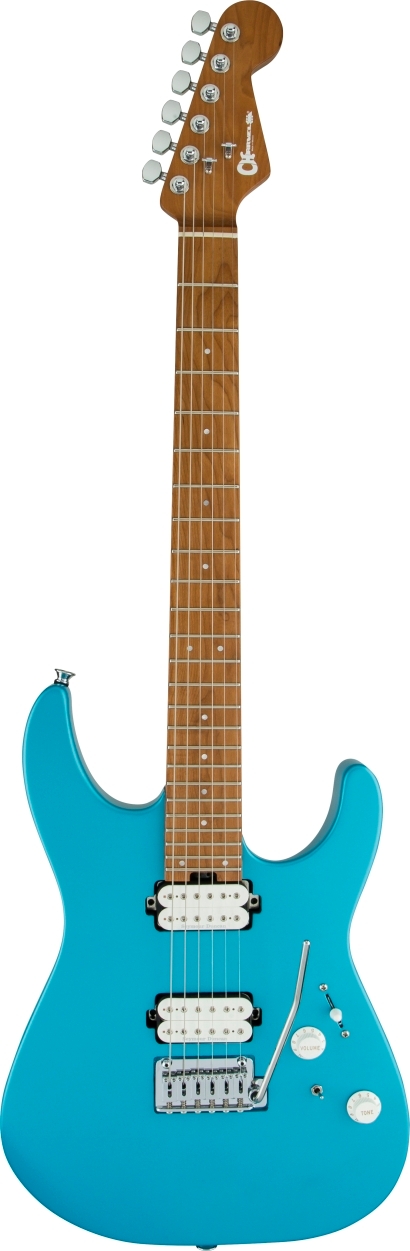

Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.
-
Overview
Featuring a sculpted shredder's cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky® style is cloaked in several stage-stealing finishes - Gloss Black, Matte Blue Frost, Satin Burgundy Mist or Three-Tone Sunburst.
The bolt-on caramelized maple "speed" neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12"-16" compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.
Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe features an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred TB-10 bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Blending sophisticated style with assertive tone, the DK24 HH 2PT CM also offers premium modern features such as a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.
-
Features
Alder BodyBolt-on Caramelized Maple Neck with Graphite ReinforcementScalloped Lower BoutShredder's Cut Heel12"-16" Compound Radius Caramelized Maple FingerboardCustom Seymour Duncan Full Shred SH-10B bridge pickup and custom Seymour Duncan Alnico II Pro APH-1N neck pickupHeel-Mount Truss Rod Adjustment WheelGotoh Custom 510 Recessed Tremolo Bridge5-Way Blade, 500K EVH Bourns Low-Friction Potentiometer Volume & No-Load Tone ControlsA mini two-way toggle switch splits the pickups for an expanded tonal palette.Beveled Output JackLuminlay Side Dots
-
Specs
General
Model Number 2969411534 Series Pro-Mod Color Matte Blue Frost Number of Strings 6 Orientation Right-Hand Electronics
Bridge Pickup Seymour Duncan® Full Shred™ TB-10 Neck Pickup Seymour Duncan® Alnico II Pro™ APH-1N Pickup Color Flat Parchment Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone Pickup Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup Auxiliary Switching 2-Position Mini Toggle Down/All Series, Up/All Parallel Pickup Configuration HH Hardware
Bridge Gotoh® Custom 510 Tremolo Hardware Finish Chrome Tremolo Arm Gotoh® Tuning Machines Charvel®-Branded Die-Cast Locking Pickguard None Control Knobs Strat®-Style Skirt Switch Tip Parchment Saddle Height Wrench Yes Neck
Neck Material Caramelized Maple Neck Construction Bolt-On with Graphite Reinforcement Neck Finish Hand-Rubbed Urethane Neck Shape Speed Neck with Rolled Fingerboard Edges Neck Binding None - Rolled Fingerboard Edges Scale Length 25.5" (64.77 cm) Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Caramelized Maple Number of Frets 24 Fret Size Jumbo Nut Material Graph Tech TUSQ XL Nut Width 1.6875" (42.86 mm) Position Inlays 4mm Pearloid Dot Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel String Trees Fender® Standard String Guide Headstock Licensed Fender® Stratocaster® Neck Plate None - 4-Bolt Sculpted Heel Miscellaneous
Strings Nickel Plated Steel (.009-.042 Gauges) Strap Buttons Standard Case/Gig Bag Optional Gig Bag (p/n 007-6756-000) Other Features Luminlay® Side Dots -
Pickup Switching
