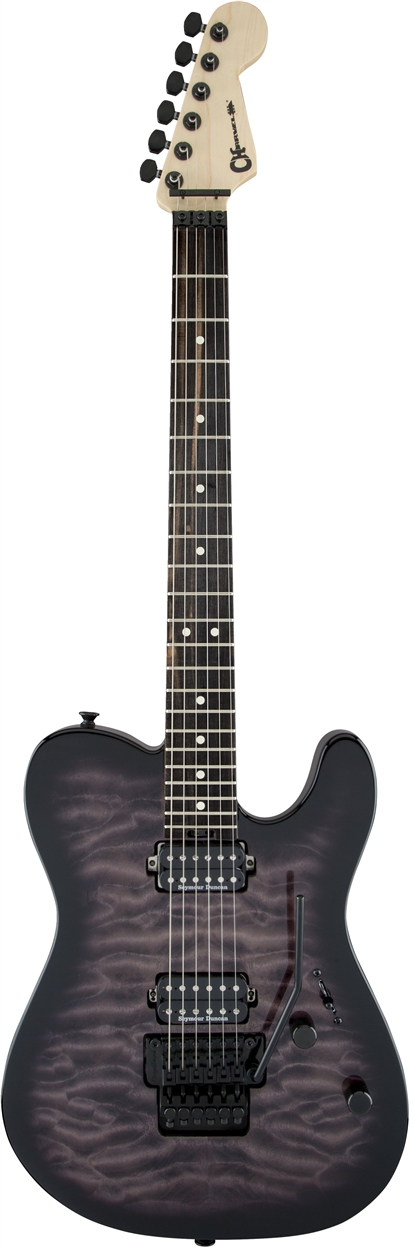

San Dimas® Style 2
The alder San Dimas Style 2 body with quilt maple top is paired with a graphite-reinforced bolt-on maple neck, offering rock-solid stability regardless of ravages of the road and climate. Engineered for effortlessly nimble and highly-expressive playing, this guitar has a speed neck profile with hand-rubbed urethane back finish and a 12”-16” compound radius ebony fingerboard with 22 jumbo frets and white dot inlays. The heel-mount truss rod adjustment wheel makes for painfree neck relief tweaks.
Hot-rodded for unparalleled performance and versatile sound, this instrument is equipped with a high-output Seymour Duncan® JB TB-4 humbucking bridge pickup and a warm, fat Seymour Duncan ’59 SH-1N humbucking neck pickup for killer tone, controlled with a three-way blade switch. The volume control hides a push/pull coil split for even more highly useful tonal variations—ideal for everything from a biting lead sound to thick, chunky rhythm work, while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound, letting the full natural voice of the guitar shine through.
Scream or rumble with a Floyd Rose® 1000 Series double-locking recessed tremolo system without sacrificing tuning stability or the pinpoint intonation.Ready to spawn sonic waves of bliss, this sophisticated Transparent Black Burst axe is completed with black hardware.
Quilt Maple TopBolt-on Maple Neck with Graphite ReinforcementScalloped Lower BoutShredder's Cut Heel12"-16" Compound Radius Aged Ebony FingerboardDirect Mount Seymour Duncan TB-6/SH-6N Distortion PickupsHeel-Mount Truss Rod Adjustment WheelFloyd Rose 1000 Series Double-Locking Tremolo Bridge SystemBeveled Output JackAged Ebony Fingerboard3-Way Blade, Push/Pull Volume & No-Load Tone ControlsContoured Body
Model Number 2965901510 Est. U.S. Street $949.99 Series Pro-Mod Color Transparent Black Burst Number of Strings 6 Orientation Right-Hand
Bridge Pickup Seymour Duncan® JB TB-4 Neck Pickup Seymour Duncan® '59™ SH-1N Controls Volume (Push/Pull Coil Split), No-Load Tone Pickup Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil Pickup Configuration HH
Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed) Hardware Finish Black Tuning Machines Charvel®-Branded Die-Cast Pickguard None Pickup Covers Black Control Knobs Knurled Flat-Top Switch Tip Black
Neck Material Maple Neck Construction Bolt-On with Graphite Reinforcement Neck Finish Hand-Rubbed Satin Urethane Neck Shape Speed Neck with Rolled Fingerboard Edges Neck Binding None - Rolled Fingerboard Edges Scale Length 25.5" (648 mm) Fingerboard Radius 12" to 16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Aged Ebony Number of Frets 22 Fret Size Jumbo Nut Width 1.6875" (42.86 mm) Position Inlays White Dot Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel Headstock Licensed Fender® Stratocaster® Neck Plate None
Strings Nickel Plated Steel (.009-.042 Gauges)
