Pro-Mod Series

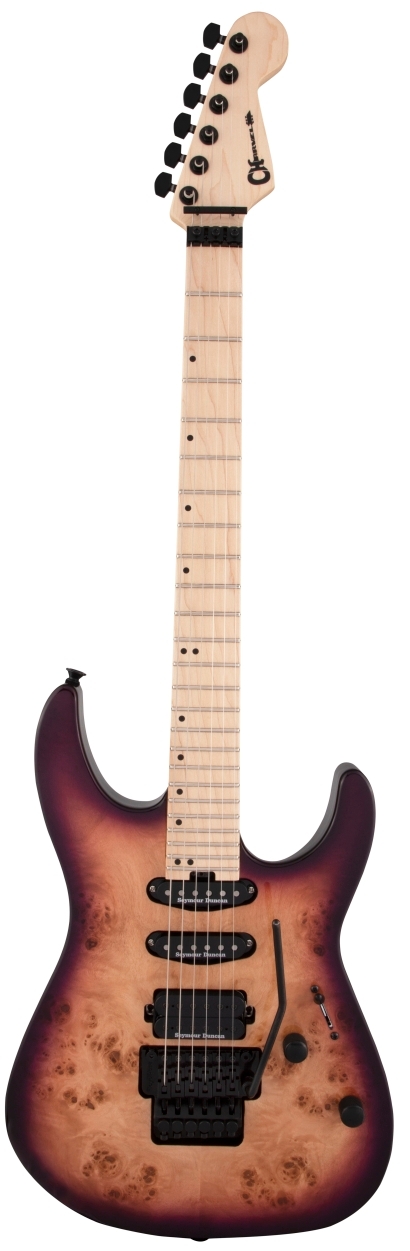

Charvel’s Pro-Mod DK24 HSS FR M Poplar is a perfect fusion of elegance and high performance, designed for a new breed of player whose musical vision and versatility knows no boundaries.
-
Overview
Featuring a sculpted shredder's cut heel and scalloped lower back bout for maximum playing enjoyment, the alder Dinky™ body is capped with a poplar burl top that makes a bold statement in a Purple Sunset finish with black hardware. The “speed” neck features a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, and a heel-mount truss rod adjustment wheel for quick and painless neck relief tweaks. Built for fast playing speeds, the 12”-16” compound radius maple fingerboard features comfortable rolled edges, 24 jumbo frets and black offset dot inlays.
An HSS pickup configuration consisting of a Seymour Duncan® Full Shred™ SH-10B bridge pickup, Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup hits with plenty of focused humbucker grit and springy vintage snap. Dial in the tonal spectrum that best suits your playing with five-way blade switching, single volume control (with 500K EVH® Bourns™ low friction potentiometer) and no-load tone control that operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through.
This modernized instrument is also equipped with a recessed Floyd Rose® 1000 Series double-locking tremolo bridge system for superior tuning stability and radical pitch-raising capability.
-
Features
Alder Dinky™ Body with Poplar Top
Scalloped Lower Back Bout
Shredder's Cut Heel
Seymour Duncan® Full Shred™ SH-10B bridge, Seymour Duncan Flat Strat® SSL-6 single-coil middle and Seymour Duncan Flat Strat SSL-6 RWRP single-coil neck pickups
12"-16" Compound Radius Maple Fingerboard with Rolled Edges
5-Way Blade, Volume Control with 500K EVH Bourns® Low Friction Potentiometer & No-Load Tone Control
Floyd Rose®1000 Series Double-Locking Tremolo Bridge System
Heel-Mount Truss Rod Adjustment Wheel -
Specs
General
Model Number 2969436535 Series Pro-Mod Color Purple Sunset Number of Strings 6 Orientation Right-Hand Electronics
Bridge Pickup Seymour Duncan® Full Shred™ SH-10B Middle Pickup Custom Seymour Duncan® Flat Strat® SSL-6 Single-Coil Neck Pickup Custom Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil Pickup Color Black Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone Pickup Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup Pickup Configuration HSS Body
Body Finish Gloss Body Shape Dinky™ Body Material Alder Body Top Poplar Burl Hardware
Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed) Hardware Finish Black Tremolo Arm Floyd Rose® 1000 Series Locking Tuning Machines Charvel®-Branded Die-Cast Pickguard None Control Knobs Dome-Style Switch Tip Black Neck
Neck Material Maple Neck Construction Bolt-On with Graphite Reinforcement Neck Finish Hand-Rubbed Satin Urethane Neck Shape Speed Neck with Rolled Fingerboard Edges Neck Binding None - Rolled Fingerboard Edges Scale Length 25.5" (648 mm) Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm) Fingerboard Material Maple Number of Frets 24 Fret Size Jumbo Nut Material Floyd Rose® 1000 Series Locking Nut Width 1.6875" (42.86 mm) Position Inlays Offset Black Dot Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel String Trees Floyd Rose® Retainer Bar Headstock Licensed Fender® Stratocaster® Neck Plate None - 4-Bolt Sculpted Heel Miscellaneous
Strings Nickel Plated Steel (.009-.042 Gauges) Strap Buttons Standard -
Pickup Switching
-
